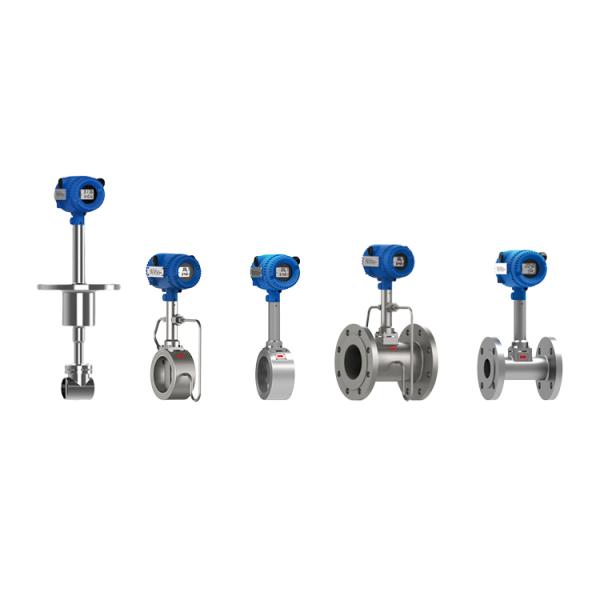

GMF603-D HART RS-485 DN15~DN300 mm Bluetooth stainless steel LCD high-pressure mulit-parameter vortex flowmeter

Name: GMF603D HART RS485 DN15DN300 mm Bluetooth stainless steel LCD highpressure mulitparameter vortex flowmeter
Brand: HCATM
Price: 800 USD

Wholesale GMF603-D HART RS-485 DN15~DN300 mm Bluetooth stainless steel LCD high-pressure mulit-parameter vortex flowmeter from china suppliers

Brand Name : HCATM

Model Number : GMF603-D

Certification : CE，RoHS

Place of Origin : Xi'an

MOQ : 1

Price : $800USD/pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 3-5 days

Packaging Details : Packed in cardboard or wooden cases

Model : GMF603-D

Acuracy : ±0.3RD%

Medium : Gas/Steam/Liquid

Pipe size : DN15~DN300 mm (1/2 ~ 12 inches)

Contact Now

GMF603-D Clamp type HART RS-485 Bluetooth stainless steel LCD high-pressure OEM vortex flow meter
GMF603-D HART RS-485 DN15~DN300 mm Bluetooth stainless steel LCD high-pressure mulit-parameter vortex flowmeter
Product Overview
GMF603-D Vortex flowmeter is produced according to the Karman vortex principle. It is mainly used for the flow measurement of industrial pipeline fluids, such as gases, liquids, vapors and other media. It is characterized by small pressure loss, large measuring range and high precision. It is almost unaffected by parameters such as fluid density, pressure, temperature and viscosity when measuring the volume flow rate. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be stable for a long time. The vortex flowmeter uses a piezoelectric stress sensor with high reliability and can operate in the operating temperature range of -20 °C to +250 °C. There are analog standard signals and digital pulse signal outputs, which are easy to use with digital systems such as computers. It is a relatively advanced and ideal measuring instrument.

Features
1. High sensitivity, low gas flow rate up to 2m/s
2. The range ratio exceeds the traditional vortex street and the measurement flow rate range is wide
3. Patented double vortex sensor design for excellent vibration resistance
4. No moving parts, no pressure loss
5. Built-in temperature and pressure sensor dynamically monitor fluid temperature and pressure
6. Direct measurement of steam mass flow without external temperature pressure compensation
7. Fully isolated electrical structure completely filters out external interference
8. Wide supply voltage input range for a variety of complex power environments
9. Support temperature and pressure compensation integrated two-wire system 4 ~ 20mA power supply
10. Large screen LCD double-line display, clear and easy to read
11. With Modbus and HART@4~20mA Fieldbus interface

Technical parameters

Model	GMF603-D
Medium	Gas/Steam/Liquid
Nominal Diameter	DN15~DN300 mm (1/2 ~ 12 inches)
Flow Range	Gas/Steam: DN15, DN20: 6m/s~70m/s; DN25, DN32: 4m/s~70m/s; DN40 ~ DN300: 2m/s to 70m/s Liquid: 0.3m/s~7m/s
Accuracy	Working condition flow: ±1.0% RD (gas/steam); Mass flow: ±1.5% RD; Medium pressure: ±0.5% FS Medium temperature: ±1.0 °C (±1.0% FS >100 °C)
Repeatability	±0.3RD%
Output	4~20mA@HART, RS-485, Bluetooth, Internet of Things
Power	13.5 ~ 42VDC
Medium Temperature	-40~150 ° C (normal temperature type); -40~ 250 ° C (high temperature type)
Process Pressure	1.6MPa (universal) 2.5MPa, 4.0MPa (optional)
Process Temperature	-40～+85°C
Environment Humidity	5~100% RH
Process Connection	Clamp type / flange connection type / clamp connection (sanitary) type
Protection Level	IEC IP65/IP67
Explosion-proof Grade	ExdIICT3/FM/CSA/ATEX
Material	Body: 304 or 316L Vortex sensor: 316L Temperature sensor: 304 Pressure sensor: 316L Converter housing: aluminum

Product Details

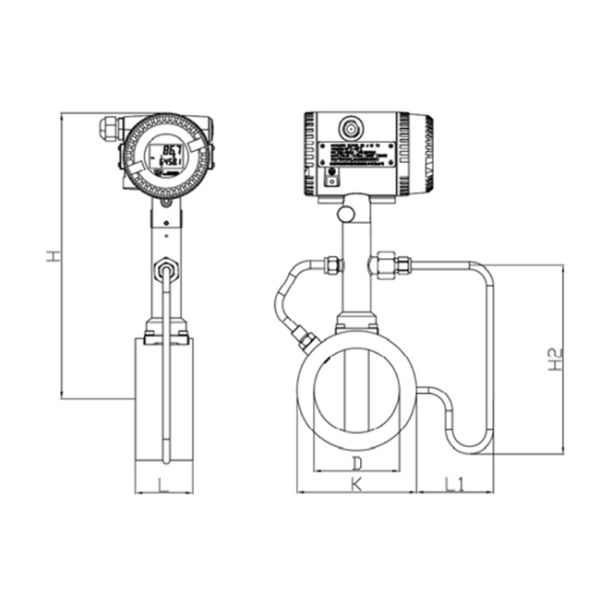

Dimensions
GMF603-D HART RS-485 DN15~DN300 mm Bluetooth stainless steel LCD high-pressure mulit-parameter vortex flowmeter
Application
Compressed air standard consumption measurement
Steam mass flow and consumption measurement
Natural gas standard flow and consumption measurement
Coal mine gas drainage flow monitoring
Fluid temperature pressure measurement
