GMF701-C Clamp type medicine food drink stainless steel hygienic electromagnetic flow meter
GMF701-C Clamp type electromagnetic flowmeter performs flow measurement according to Faraday's law of electromagnetic induction. The advantage of the electromagnetic flowmeter is that the pressure loss is extremely small and the flow range can be measured. The ratio of the maximum flow to the minimum flow is generally 20:1 or more. The applicable industrial pipe diameter range is wide, the output signal and the measured flow rate are linear, and the accuracy is high, and the liquid with conductivity ≥ 5 μs/cm can be measured.
Electromagnetic flowmeter clamp type installation method has the advantages of easy installation and cleaning, and is often used in food production, pharmaceutical industry pharmaceutical measurement and water purification monitoring.
Technical Parameter
| Medium | Conductive liquid |
| Characteristics | Universal |
| Precision | ±0.5%FS |
| Output | Pulse; frequency; 4-20mA
HART；RS-485；RS-232； GPRS |
| Pipe Diameter | DN25-DN200mm |
| Conductivity | ≥5μS/cm |
| Lining | Chloroprene rubber
Fluoroplastics (F4, F46, PFA)
Polyurethane rubber
FEP (polytetrafluoroethylene propylene) |
| Flow Rate Range | 0-10m/s |
| Fluid Temperature | -25℃～160℃ |
| Electrode Material | 316L, Hastelloy, titanium, tantalum, etc. |
| Body Material | SS304 |
| Installation way | Flange clamp |
| Structure Type | Integrated-type |
| Protection Level | IP67 |
| Working Environment | Environmental temperature: -20 ~ +60 ° C
Humidity: 5%~95% RH |
| Pressure Level | 1.0MPa；1.6MPa；4.0MPa |
| Power Supply | 24VDC；220VAC |
| Explosion Proof | Explosion-proof ExdeibmbIICT3-T6 |
| Power Consumption | 0.65W |
| Remarks | Installation methods, pressure levels, body materials, electrode materials, lining materials, output signals and other parameters can be customized according to different customer needs. |
Product Features
1. Sanitary flowmeter
2. Easy to install and easy to clean
3. Use food, medicine and other industries
4. Real-time / cumulative flow, accurate measurement,RS485 communication, real-time transmission
5. positive and negative flow, two-way accumulation
6. Multiple units, switch any way
7. Bar graph display, intuitive and clear
8. Three-layer composite board technology, highly integrated, and good stability
9. The ordinary conversion board is increased by more than 2 times to avoid problems such as the aging of the general flow meter plugging part and the inability to display the screen.

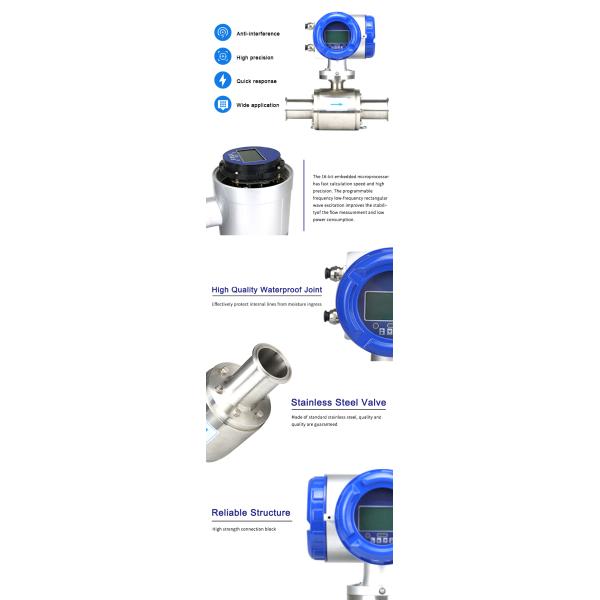

Product Details
Application
Application of hygienic electromagnetic flowmeter in the aseptic filling system of food and beverage industry, the rapid development of modern society, with the improvement of people's living standards and the accelerated pace of life, there are many bottled, canned and portable bottles. Bagged food and beverages. In pharmaceutical companies, there are also a large number of liquid medicines in bottles and bags. Liquid beverages and liquid medicines for these production applications require an aseptic filling system that requires the filling system to complete the filling quickly, safely and accurately. Compared with the traditional fixed-volume filling system, the system has more stable safety, the hygienic condition of the liquid in the packaging content is greatly improved, and the requirement of the aseptic filling system for the quantitative control of filling has changed. Some professional filling flow meters enter the filling application field. This dynamic online measurement and control method brings new challenges. The quantitative control method for online direct measurement and control flow requires a professional flow meter to meet the special filling method. Demand, in use, not only need to consider the installation and use of the meteor meter itself, but also consider the interaction between the flowmeter and other parts when the flowmeter is integrated into the system.
